A coil selection can appear acceptable on total airflow and capacity while still creating an airside problem at the coil. The usual cause is an incorrect face area assumption. To calculate face velocity correctly, divide the air volume passing through the coil by the coil’s gross frontal area, then evaluate that result against the coil geometry, application, and operating condition.
For DX evaporators and condensers, face velocity is not an isolated rating. It affects airside pressure drop, heat transfer, moisture removal, condensate carryover, fan energy, sound, and the practical tolerance of the coil to fouling. A useful calculation therefore starts with the correct definition of area and ends with a performance assessment rather than a single acceptable number.
Calculate Face Velocity From Airflow and Face Area
Face velocity is the average superficial air velocity through the gross frontal plane of a coil. In U.S. customary units, the calculation is:
`Face velocity (ft/min) = Airflow (cfm) / Gross face area (ft²)`
Gross face area is the coil height multiplied by its width, measured perpendicular to airflow. It is the outside face dimension of the active finned section, not the cabinet opening, duct cross-section, or estimated open area between fins.
For a coil that is 36 inches high and 48 inches wide, gross face area is:
`36 in × 48 in = 1,728 in²`
`1,728 in² / 144 = 12 ft²`
At 4,800 cfm, face velocity is:
`4,800 cfm / 12 ft² = 400 ft/min`
This 400 ft/min value is the air velocity normally referenced in coil selection discussions. It provides a consistent basis for comparing coils with different fin densities, tube arrangements, and circuiting configurations.
Use Actual Airflow, Not Nominal Equipment Airflow
The airflow in the equation should represent the operating airflow through the coil. Nominal fan capacity is not always sufficient. External static pressure, dirty filters, dampers, fan speed control, economizer operation, and fan-system interaction can materially change delivered cfm.
For design work, use the specified design airflow at the relevant operating point. For troubleshooting, use measured or credibly inferred airflow. If airflow is based on a fan curve, ensure that the system resistance point includes the coil pressure drop, filter loading condition, and all upstream and downstream restrictions that exist in service.
Air density does not change the basic cfm divided by area calculation. However, it changes mass flow rate and therefore changes thermal capacity, sensible heat transfer, latent performance, and airside pressure loss. A 400 ft/min face velocity at high elevation is geometrically the same as 400 ft/min at sea level, but it is not thermally equivalent because the mass of dry air crossing the coil is lower.
Gross Face Area Versus Free Area
Face velocity is frequently confused with free-area velocity. They are not interchangeable.
Gross face area is the full height-by-width area of the finned coil face. Free area is the portion of that plane open to airflow after tubes, fins, fin collars, and other obstructions are considered. Air accelerates through the free area, so local air velocity between fins is substantially higher than calculated face velocity.
For most HVAC&R coil design and selection work, gross face velocity is the preferred input and reporting metric. Coil performance data, airside pressure-drop correlations, and selection software are typically structured around coil geometry and gross frontal velocity. The software accounts for the internal air passages and resulting local velocities through the fin pack.
Using free area in the standard face-velocity equation produces an inflated value that cannot be compared directly with conventional coil selection limits. Conversely, using a cabinet opening that is larger than the finned coil face produces an artificially low velocity and can conceal a high-pressure-drop or carryover risk.
The correct sequence is straightforward: establish gross finned height and width, calculate gross face area, and divide actual coil airflow by that area. If coil performance must be modeled, apply the resulting face velocity together with fin spacing, rows, tube geometry, circuiting, entering-air state, and refrigerant conditions.
Why Face Velocity Matters in DX Evaporators
For an evaporator, increasing face velocity generally increases airside heat transfer because more air moves across the fin surface. It also increases airside pressure drop and fan power requirement. The relationship is nonlinear: pressure drop often rises much faster than airflow velocity, particularly in dense fin configurations or coils with multiple rows.
Latent performance adds another constraint. At high face velocity, water droplets can be pulled from the coil surface and entrained in the leaving airstream. This condensate carryover can create downstream duct moisture, microbial growth risk, insulation damage, and inaccurate delivered humidity control. The carryover threshold depends on fin geometry, coil depth, wetness, entering-air condition, face area, and whether eliminators or other downstream provisions are used.
Lower face velocity is not automatically better. A larger coil face can reduce pressure drop and carryover potential, but it may increase cabinet size, coil cost, refrigerant charge, and distribution complexity. At very low velocity, airflow distribution across a large coil can become the limiting issue. Uneven entering airflow can cause one section of the coil to operate at a much higher local velocity than the calculated average suggests.
For low-temperature DX evaporators, frost accumulation changes the decision further. The clean-coil face velocity may be acceptable, but frost progressively reduces free area and increases airside resistance. Defrost frequency, allowable pressure-drop rise, fan capability, and airflow distribution should be considered at the intended frost load rather than only at clean conditions.
Condenser Face Velocity Has Different Constraints
Air-cooled condensers are also governed by face velocity, but their primary design constraints differ from those of wet evaporators. Condenser coil face velocity affects airside pressure drop, fan power, sound, coil depth, and condensing temperature. Higher airflow can reduce condensing temperature and improve system efficiency, but the energy benefit must be weighed against added fan power and acoustic output.
Condenser selection also depends heavily on entering-air temperature and recirculation. A correct face velocity calculation cannot compensate for elevated entering-air temperature caused by hot discharge-air recirculation. In that condition, the coil can have adequate face area and airflow on paper while operating at an unfavorable condensing pressure in the installed arrangement.
For VFD-controlled condenser fans, calculate face velocity at each relevant operating mode. Full-speed design conditions establish maximum capacity, but reduced-speed operation affects pressure drop, sound, refrigerant control stability, and head-pressure management. One nominal cfm value rarely describes the whole operating envelope.
Apply the Calculation to the Full Airside Assembly
The coil does not always see uniform airflow across its entire face. Fan proximity, transitions, elbows, filter banks, dampers, electric heaters, and cabinet baffles can distort the velocity profile. A calculated average of 450 ft/min may include zones moving at 300 ft/min and others exceeding 600 ft/min. The high-velocity regions can drive localized carryover, elevated pressure loss, or uneven refrigerant loading.

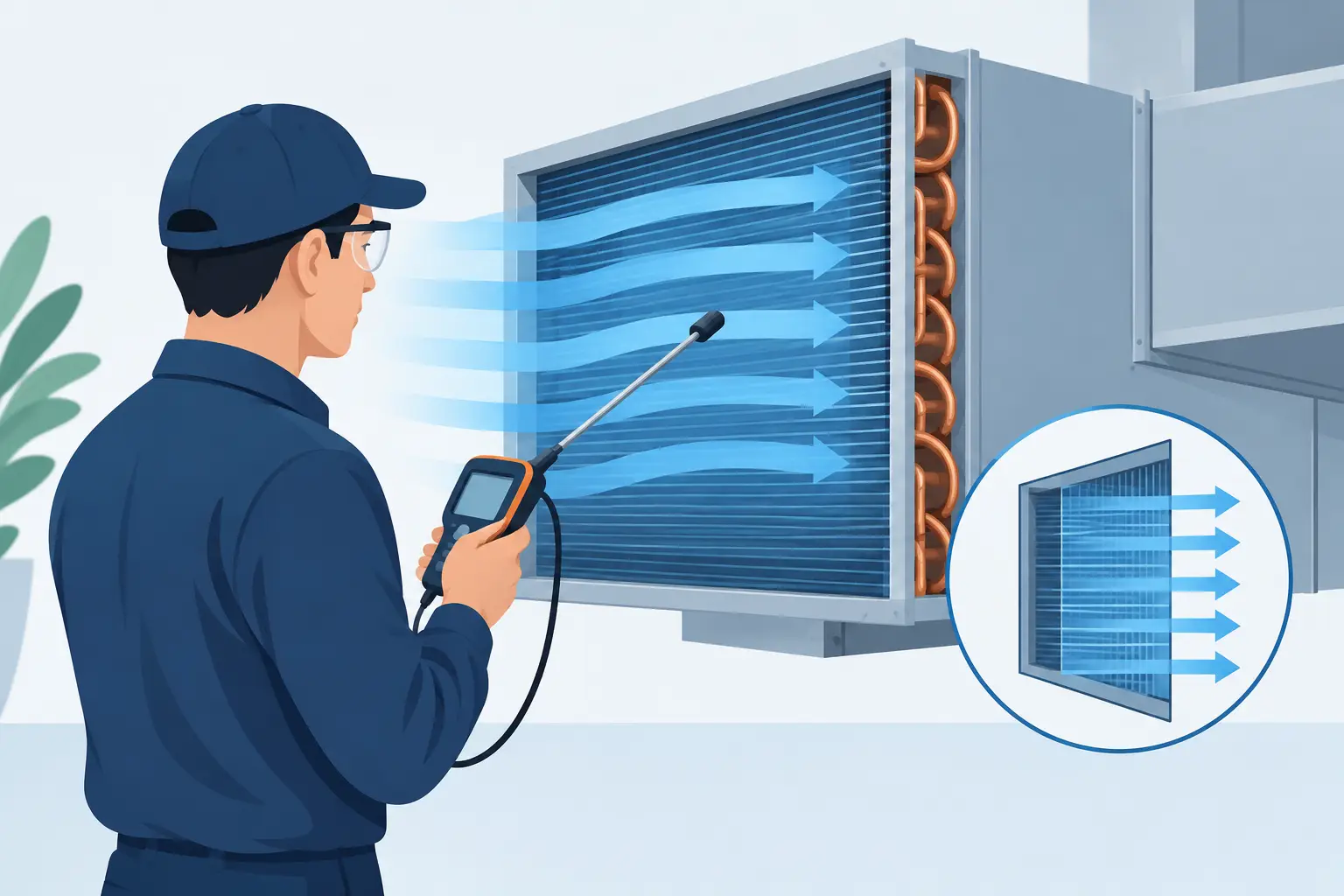

For packaged equipment and unit coolers, check whether the published coil face dimensions exclude inactive perimeter areas, tube-sheet margins, structural members, or fan-panel restrictions. Use the active finned dimensions whenever possible. For field verification, measure multiple air velocities across a representative grid or determine airflow from a calibrated fan curve and static-pressure measurement. A single point anemometer reading near the coil face is rarely representative.
Also account for bypass paths. If some air flows around the coil through cabinet gaps or poorly sealed filter frames, fan airflow is greater than coil airflow. Dividing total fan cfm by coil area then overstates actual face velocity and may overpredict capacity. The relevant airflow is the portion that passes through the finned surface.
A Practical Engineering Check
After calculating face velocity, do not judge it against a universal limit. A suitable value depends on the coil’s fin pitch, number of rows, wet or dry operation, intended duty, allowable airside pressure drop, fan curve, sound target, and contamination exposure. A clean comfort-cooling evaporator, a refrigerated warehouse unit cooler, and an air-cooled condensing unit can each justify different design choices.
Engineering-grade thermal analysis is particularly valuable when the design is near a constraint. Rather than treating face velocity as a pass-fail rule, model its effect on capacity, sensible heat ratio, refrigerant pressure drop, leaving-air condition, airside resistance, and operating margin. ExCoil supports this type of coil-specific evaluation for DX evaporators and condensers where geometry and refrigerant behavior must be considered together.
The most useful face-velocity calculation is therefore the one tied to the actual coil, actual airflow, and actual duty. It gives the design team a defensible starting point for deciding whether more face area, a different fin geometry, revised fan selection, or better airflow distribution will produce the better system result.
